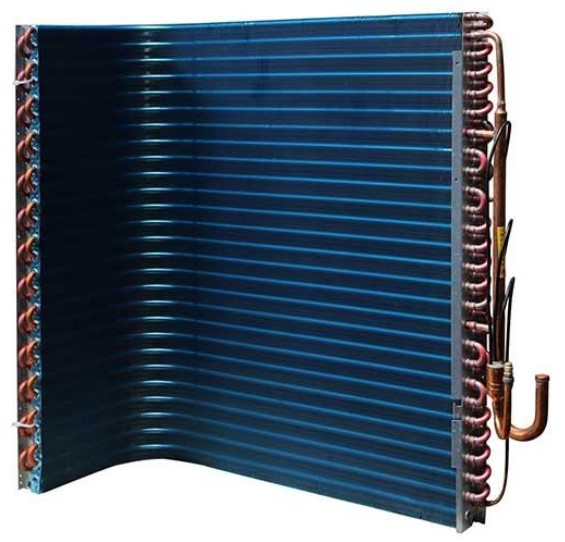

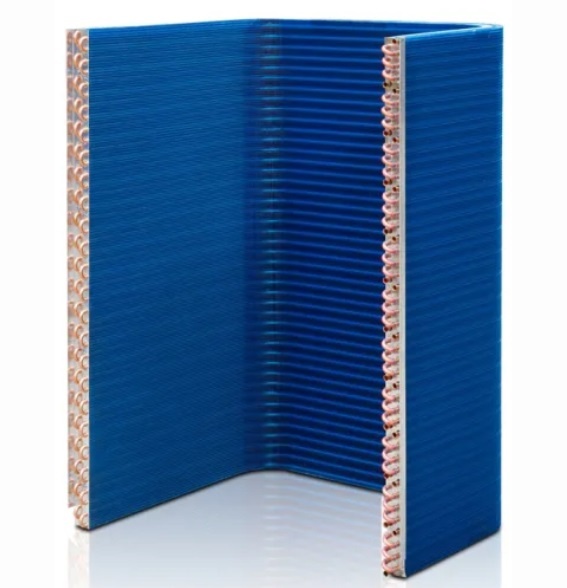

Air side heat exchanger

Air side heat exchanger

Sorted according to ventilation mode:

1. Blowing-type: Tube banks lie in the exhaust side of the blower

2. Draught fan: Tube banks lie in the inlet side of the blower



Sorted according to the installation and placing modes of the tube banks:

1. Horizontal type: Horizontally place the tube banks

2. Inclined type: Inclined place the two tube banks with the horizontal plane in 60 degree dip angle

3. Vertical type: The tube banks are vertically placed on both sides of the structure.

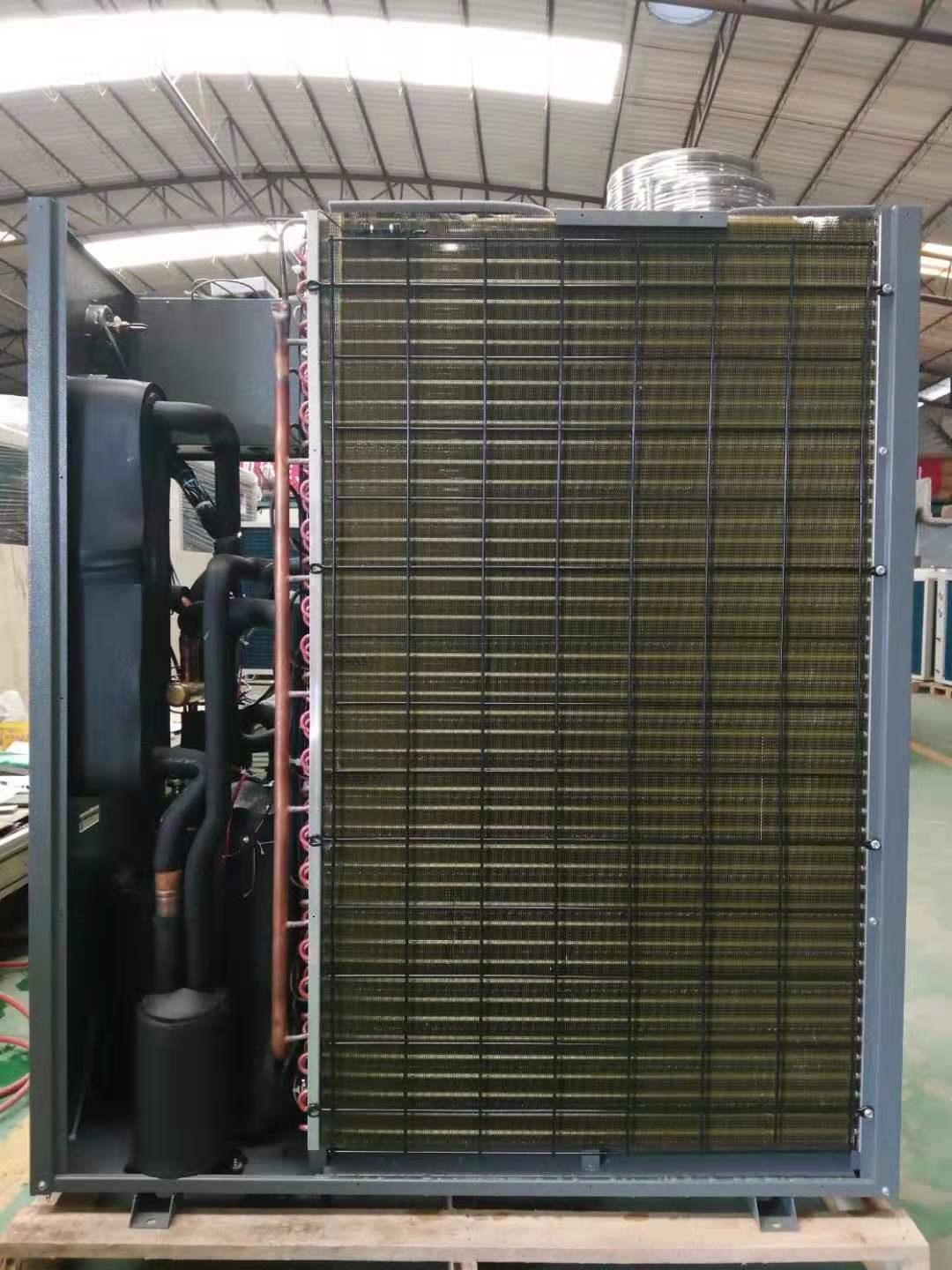

Heat exchanger for heat pump,air conditioner and related cooling,heating products.

Copper pipe Alumium  Side plate (Alumium )
Diameter (mm) Thickness (mm) Type Thickness (mm) Thickness (mm)
7~12.7 0.1~1 Hydrophlic 0.1~1 1~1.5
